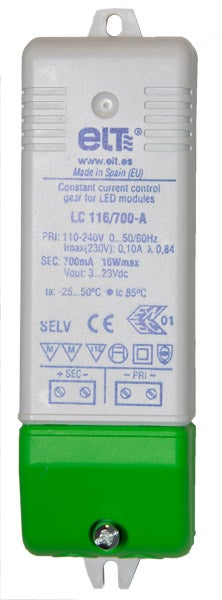

16W 700mA 6-23V Constant Current LED Driver

Product description LC 116/700-A - ELT 9918004  Product overview This 16W constant current LED driver provides 700mA constant current output, 16W power, and 6-23V voltage range. It is designed for indoor LED lighting installations, providing high efficiency and long lifetime. Product Features Class II electrical protection. Indoor use. Equipped with terminal cover and cable clamps. Clamping screws on primary and secondary circuits for cables with diameter: 3 mm to 8 mm. Max. terminal section area 2,5 mm². (secondary circuit). Maximum length of secondary cables: 5 m. Suitable for installation on wooden surfaces. Standby ecological mode: <0,4 W. High power factor. Thermal protection. Overload protection. Short circuit protection Protection against no load operation. LED module dynamic protection. Permitted input voltage AC/DC: 198-264V. Nominal lifetime at max. ta allowed: 50.000h (with a failure rate max.0,2% per 1000h). IP Class IP20Constant Current 700mA Product information ELT Product Code: 9918004 Product Specifications Manufacturer Model Code: LC 116/700-AOutput Power Range: 16WOutput Current: 700mAOutput Voltage Range at 220V: 6-23VdcPower Factor: 0,84System efficiency: >85Max.temp at TC point: 75°COperating temp: -25- 50°CMeasurements: 131x38x29mmDatasheet Shipping Product can be shipped with these shipping methods. PostNord MyPack Collect 8,00 € Delivery in 1-3 business days. Package will be kept for 7 days at the pickup point. PostNord MyPack Home Finland 19,00 € Door to door service, delivery in 2-6 business days. PostNord Finland Parcel (For companies) 12,00 € Delivery in 1-3 business days. Door to Door service for business addresses. Matkahuolto Lähellä-package 8,50 € Delivery usually in 2-5 business days. The package will be kept for 7 days in the pick up location. Posti Standard Delivery Finland 9,00 € Delivery in 2-5 business days. DSV Parcel service point 8,50 € Delivery in 2-5 business days. Pick Up from Warehouse 0,00 € Pick up from warehouse (Rajakivenkatu 8, 20740 Turku) between 9AM-3PM on weekdays (closed on weekends and on national holidays). Products are ready for pick up in 3 hours.
