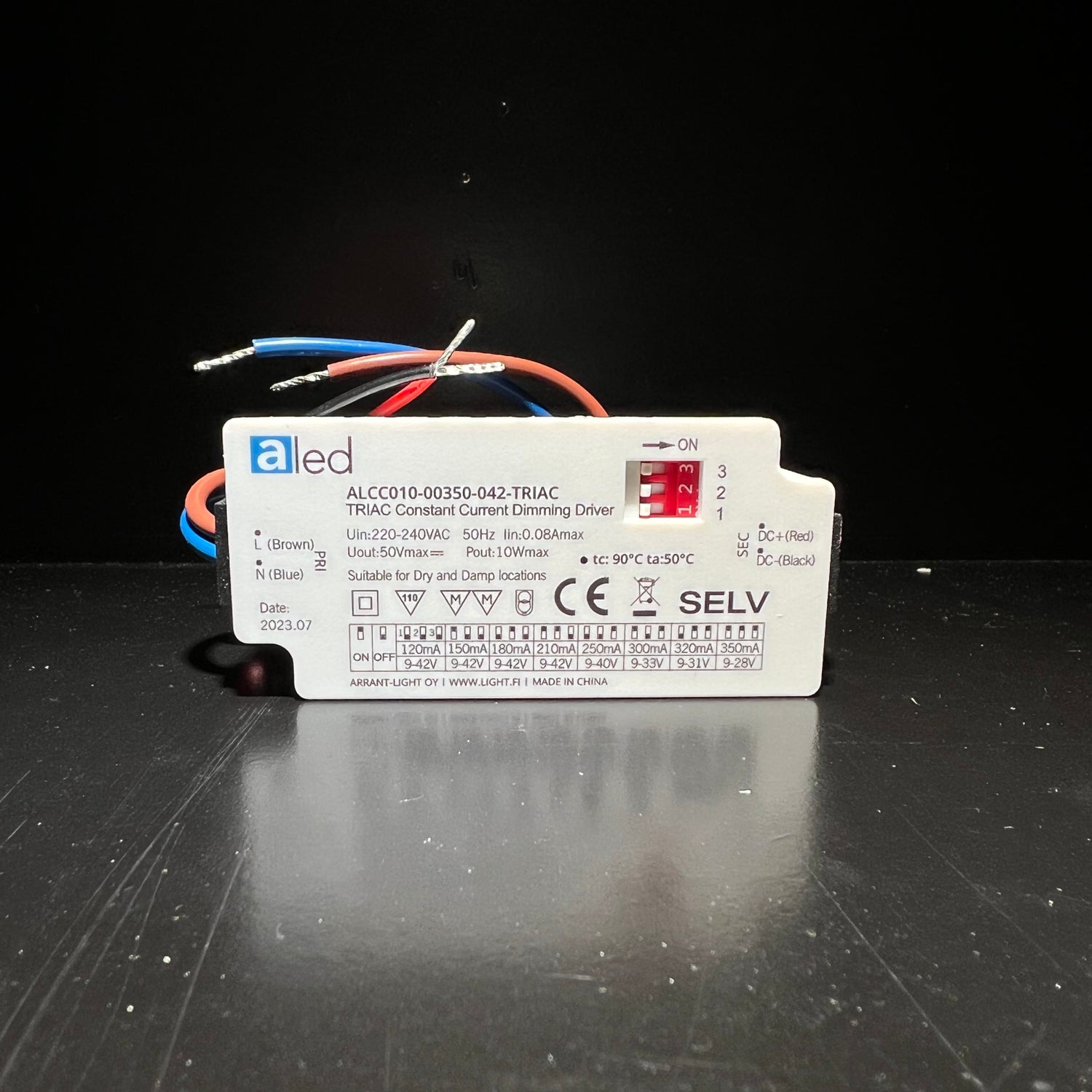

10W 120..350mA 9-42V TRIAC Dimmable Constant Current LED Driver

Product descriptionAURA ALCC010 LED DRIVER SERIES - TRIAC DIMMABLE CONSTANT CURRENT LED DRIVER FEATURES• Single channel output, output current level selectable by DIP Switch• Support Leading edge (Triac) and Trailing edge (ELV) dimmer• Input Voltage range 220-240VAC• Built-in active PFC function• Class 2 power supply. Full protective plastic housing• Half Potted Electronics• Dimming effect smooth, no flicker• Protections: Short circuit, overload, over voltage APPLICATION• Suitable for indoor LED lighting applications, such as downlights, spotlights, and panel lightsIP Class IP20Constant Current 120mA150mA210mA180mA250mA300mA320mA350mA Product informationTechnical Data Output DIP Switch Technical Data 120mA 9-42V 5.04W150mA 9-42V 6.3W180mA 9-42V 7.56W210mA 9-42V 8.82W250mA 9-40V 10W300mA 9-33V 9.99W320mA 9-31V 9.92W350mA 9-28V 9.8W Channel 1No load output voltage 50V MaxTurn On Delay Time <1s, at 230VacCurrent Tolerance ±5%Ripple Current <3% Input Voltage 220-240VACFrequency 50/60HzEfficiency 73%@230VAC, Full load 70%@230VAC, Full loadPF 0.93@230VAC, Full load 0.87@100VAC, Full loadCurrent 0.8A max@230VACInrush Current Cold start, 30A@230VAC Protections Over Voltage Hiccup, recovers after the fault condition is removed.Short Circuit Shut down the output automatically recovers after the faulty condition is removed.Overload Hiccups, self recovery after removing faults. Dimming Dimming type TRIACDimming range 3%-100% Environment IP rating IP20Working temp. -20 ~ 50°CStorage Temp. -40°C~85°CTc. 90°CRelative humidity 20~90% RH Dimensions Lenght 75mmWidth 35mmHeight 26.5mmLenght of the wires 150mmWeight 96gMaterial PC Safety Surge L-N:0.5kV;Withstand Voltage I/P-O/P: 3000VAC/1min/5mASafety standards EN61347-2-13EMI Eission EN55015EMC Immunity EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 Lifetime Lifetime 50,000h @tc:85°CSwitch cycle >25,000 times Shipping Product can be shipped with these shipping methods. PostNord MyPack Collect 8,00 € Delivery in 1-3 business days. Package will be kept for 7 days at the pickup point. PostNord MyPack Home (Long Package) 25,00 € Delivery in 2-6 business days. Door to door service. for long packages. PostNord MyPack Home Finland 19,00 € Door to door service, delivery in 2-6 business days. PostNord Finland Parcel (For companies) 12,00 € Delivery in 1-3 business days. Door to Door service for business addresses. Matkahuolto Lähellä-package 8,50 € Delivery usually in 2-5 business days. The package will be kept for 7 days in the pick up location. Posti Standard Delivery Finland 9,00 € Delivery in 2-5 business days. DSV Parcel service point 8,50 € Delivery in 2-5 business days. Pick Up from Warehouse 0,00 € Pick up from warehouse (Rajakivenkatu 8, 20740 Turku) between 9AM-3PM on weekdays (closed on weekends and on national holidays). Products are ready for pick up in 3 hours.
